12mm HDF V Groove Laminate Flooring

12mm HDF V-Groove Laminate Flooring has become a preferred choice for residential and commercial spaces due to its superior stability, realistic appearance, and acoustic performance. This flooring type combines advanced engineering design, precise manufacturing, and compliance with global standards to deliver both visual elegance and structural reliability. This article explores its materials, engineering principles, fire and safety standards, installation practices, and maintenance recommendations — providing a full technical overview for professionals and buyers.

1. What Is 12mm HDF V-Groove Laminate Flooring?

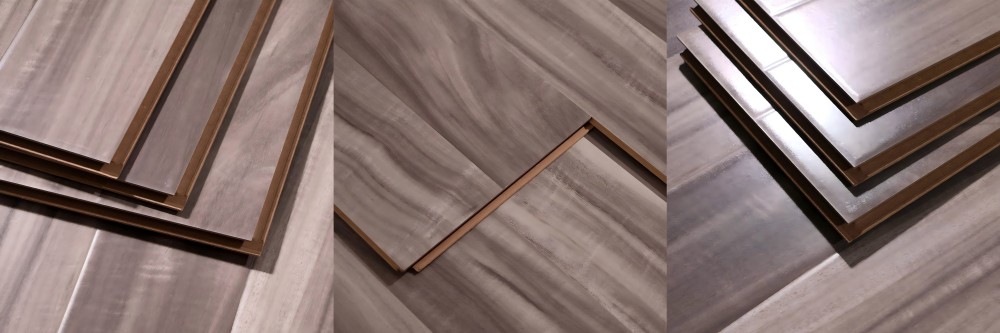

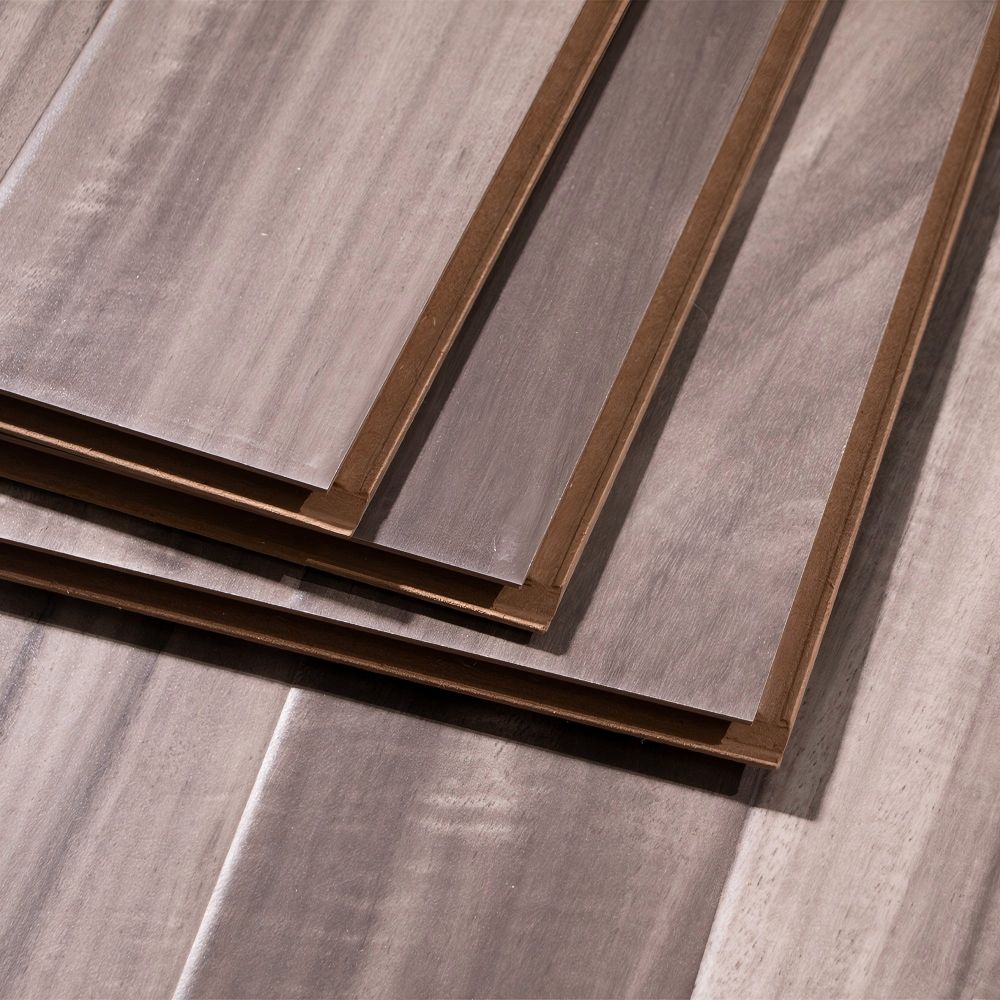

This flooring consists of High-Density Fiberboard (HDF) as the core material, coated with a decorative melamine layer and a wear-resistant overlay. The V-groove edges are chamfered on all sides to create a realistic plank appearance, mimicking natural hardwood floors while ensuring easy alignment.

Key structural layers include:

• Top Wear Layer: Transparent melamine resin with aluminum oxide for abrasion resistance (rated AC4–AC5 under EN 13329).

• Decorative Layer: Printed wood grain film resistant to UV discoloration.

• HDF Core: Density ≥850 kg/m³ for high impact resistance and dimensional stability.

• Balancing Layer: Sealed backing to prevent warping under humidity variation.

2. Engineering and Material Principles

The 12mm thickness enhances sound insulation and provides excellent underfoot comfort. The HDF board’s fine fiber composition minimizes swelling (<10%) even under elevated moisture exposure.

The V-groove technology is designed through precision milling (0.5–1.0 mm deep) to improve plank fit and conceal installation tolerances. This joint design also supports click-lock systems such as Valinge or Uniclic, ensuring tool-free assembly with tensile strength above 1.0 kN/m.

Thermal expansion coefficient typically remains under 0.05 mm/m·K, allowing stable performance under floor heating systems.

3. Compliance and Regulatory Standards

High-quality 12mm HDF V-Groove Laminate Flooring adheres to the following global standards:

• EN 13329: Defines laminate flooring classifications (abrasion, impact, moisture, and fire resistance).

• EN 717-1 / CARB Phase 2: Ensures low formaldehyde emissions (E1 or ENF grade ≤0.03 ppm).

• EN 13501-1: Fire classification standards (Bfl-s1 for flame and smoke resistance).

• ISO 9001 / ISO 14001: Quality and environmental management compliance.

These standards guarantee performance safety, environmental sustainability, and long-term reliability.

4. Installation and Maintenance Guidelines

Installation:

• Acclimate flooring for 48 hours in the target environment (18–25°C, 40–60% RH).

• Use underlays with thermal and acoustic insulation that meet EN 16354 standards.

• Maintain a 10–12 mm expansion gap around walls and fixed structures.

• Suitable for floating or glue-down methods depending on substrate condition.

Maintenance:

• Clean with a damp microfiber mop and pH-neutral laminate cleaner.

• Avoid standing water and high-temperature steam mops.

• Replace damaged planks using the click-lock mechanism.

5. Advantages and Key Benefits

12mm HDF V-Groove Laminate Flooring offers superior stability, durability, and aesthetics. Its thick HDF core resists indentation and moisture, while the V-groove design delivers a realistic wooden texture. The surface achieves AC4–AC5 abrasion ratings for heavy commercial traffic, ensuring longevity. With low VOC emissions and ENF-grade formaldehyde control, it promotes a healthy indoor environment. The flooring provides excellent sound absorption, easy installation, and compatibility with underfloor heating. Combining structural precision, visual authenticity, and sustainability, it is a high-performance flooring solution ideal for both residential and commercial interiors.

6. Frequently Asked Questions

Q1: Is 12mm HDF flooring better than 8mm or 10mm?
Yes. The increased thickness provides better acoustic insulation, stability, and comfort, especially for high-traffic areas.

Q2: Can it be used with floor heating systems?
Yes, as long as the heating temperature stays below 27°C and expansion gaps are maintained.

Q3: What is the fire resistance classification?
It typically achieves a Bfl-s1 rating under EN 13501-1, meaning low smoke emission and strong flame resistance.

Q4: How long does it last?
With proper care, 12mm laminate flooring can last 15–25 years, depending on usage and installation conditions.

Q5: Is it environmentally friendly?
Yes. Most modern products meet E1 or ENF emission standards, and HDF cores are often made from recycled wood fibers.

7. Conclusion and Professional Call to Action

12mm HDF V-Groove Laminate Flooring represents a balance between engineering precision and aesthetic craftsmanship. It delivers outstanding mechanical performance, realistic wood appeal, and long-term environmental stability.

Call to Action:
For architects, contractors, and homeowners seeking a durable and elegant flooring solution that meets modern building standards, we recommend 12mm HDF V-Groove Laminate Flooring. Consult professional installers to ensure compliance with EN and ISO standards for optimal performance, safety, and longevity in your flooring project.

Application :Application :Family kitchen, shopping mall dining places, other model house kitchens, etc
