12mm Herringbone Laminate Flooring with Click Lock System

12mm herringbone laminate flooring is a laminate floor with a 12mm HDF core, a printed décor and a herringbone pattern laid with matched left and right planks. The planks are jointed with a click-lock profile, so the floor is installed as a floating system without adhesive.

This page describes the HDF laminate construction. A 12mm rigid core SPC herringbone floor is a different construction, with a different core, weight and water behaviour, and it is specified on its own page rather than from this specification. The product type for this page is confirmed with the product team before the page is published, and the specification table below states the construction as HDF.

The herringbone layout is the staggered zigzag in which the end of one rectangular plank meets the side of the next; the market also calls it fishbone, and chevron is a different pattern with angled plank ends. The pattern needs a left and a right plank, and the pair is supplied as a matched set.

At a glance: 12mm total thickness, HDF core, AC4 abrasion class, herringbone pattern with A and B planks, click-lock floating installation, and the décor, colour and packaging available for customization. The full specification is in the table below, and the quotation confirms the values for the order.

The general laminate knowledge is covered on the laminate flooring guide, the abrasion classes and their test method on the laminate flooring wear resistance page, and the pattern as a design choice on the herringbone flooring page; this page stays with this product.

Technical Specifications

The table states the specification for the product. Entries marked as pending are confirmed for the order; a value is published only where the product documentation supports it.

Three points about the specification belong here. First, the A and B planks are supplied as a matched set, and the coverage per carton is calculated for the pair rather than for a single plank. Second, the 12mm figure describes the whole plank, not the core thickness alone, and the wear layer thickness is stated separately in the report. Third, the total thickness is not a measure of load capacity, acoustic performance or service life: those depend on the core, the wear layer, the underlay and the complete floor assembly, and they are confirmed from the product data rather than from the thickness.

Herringbone Pattern and Click Lock System

The herringbone pattern differs from a straight lay in that the planks are set at an angle to each other, so the layout has a direction and the pattern cannot be adjusted after the floor is laid. The A and B planks are the two orientations that make the pattern: each plank has its profile on the appropriate edge, and the two are laid in sequence so that the end of one plank meets the side of the next. A mixed set from different batches, or a set in which the A and B profiles are not matched, will not close correctly.

The click-lock system connects the planks along the joint: the profile is milled into the core, and the planks are engaged by hand and closed with the tapping block specified for the system. The installation is a floating system, so the floor is not glued to the subfloor, and the expansion gaps at the perimeter allow the floor to move as a unit. Whether a specific tool is required, and which one, is stated in the installation instructions for the product; the profile is designed for the plank it is milled into, and the tools for one system are not necessarily correct for another.

The laying sequence for a herringbone floor is planned before the first row: the starting point, the direction and the A and B orientation are decided together, and the joint quality is checked on a sample before the order. A tight joint resists water at the seam better than a loose one, but a tight joint does not make the seam waterproof. The general installation requirements are covered on the laminate flooring installation guide.

Core Material and Flooring Structure

The plank has a wear layer over a printed décor, an HDF core and a balancing layer. The wear layer is the transparent layer that takes the traffic and protects the décor; its abrasion class is stated in the test report. The décor carries the printed design. The HDF core gives the plank its stiffness and flatness, and the balancing layer balances the panel and helps control its movement.

The layer structure and what each layer does are covered on the laminate flooring guide. Core density is a property of the core and not a quality score, and the 12mm figure is not a measure of durability. The core density of this product is stated in its report, together with the test method, and it is read with the thickness swelling and the dimensional stability data for the same product: a denser core does not by itself establish a lower swelling, and a swelling figure quoted without its test conditions cannot be compared with another product's.

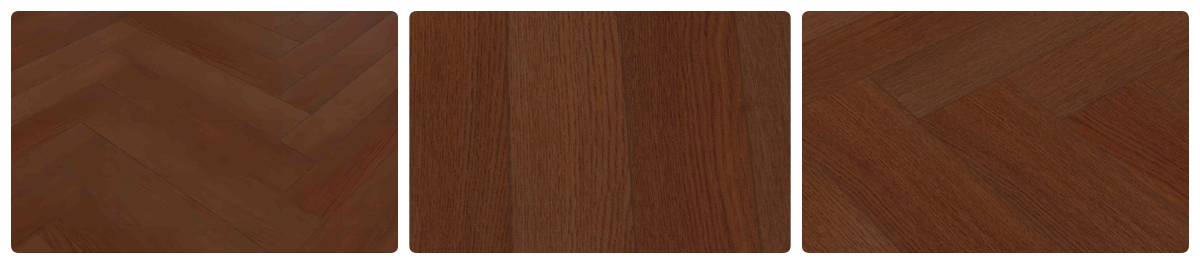

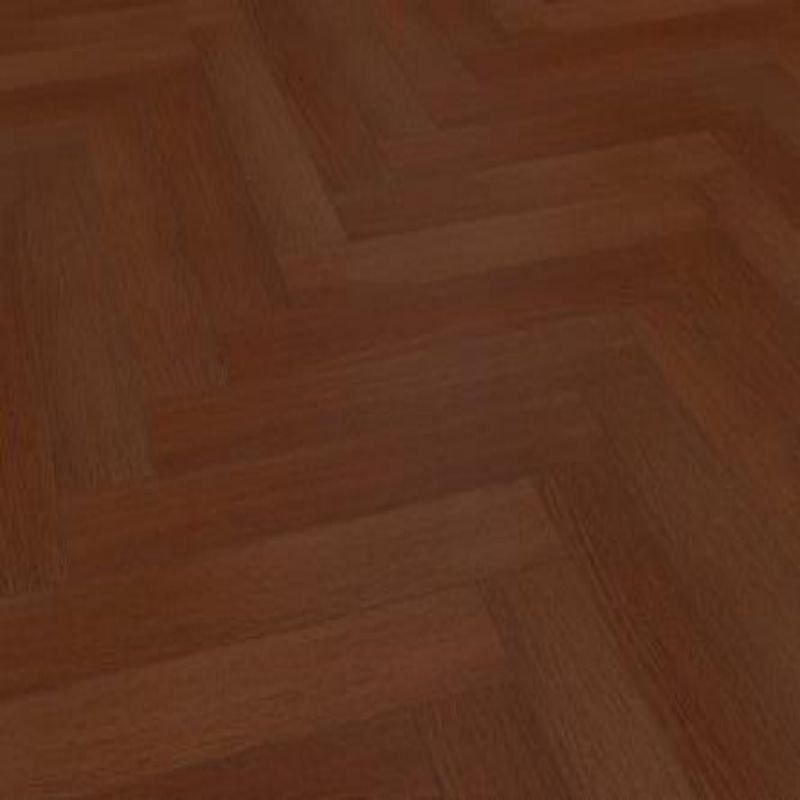

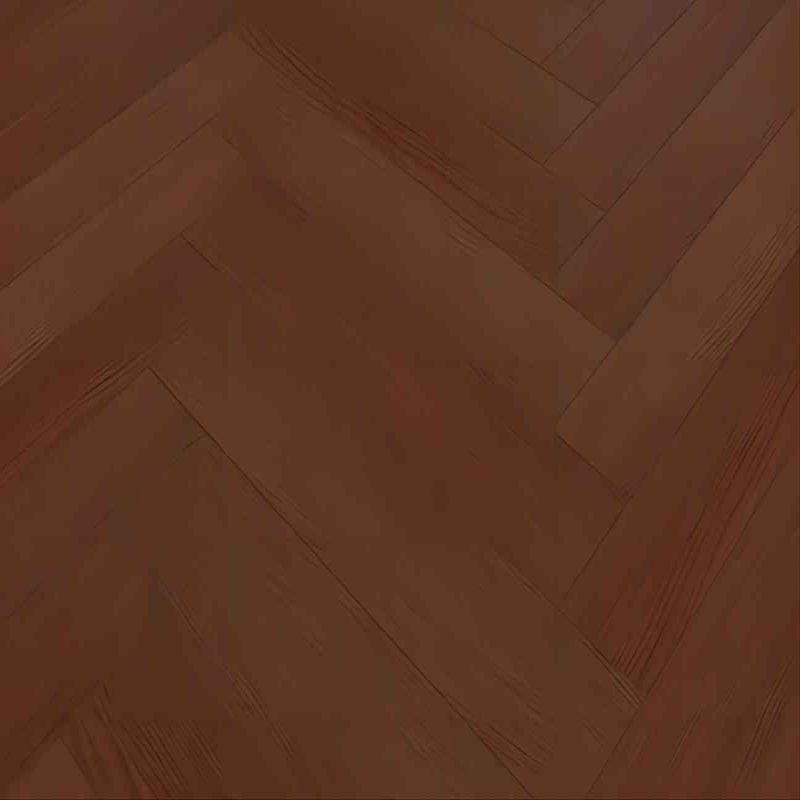

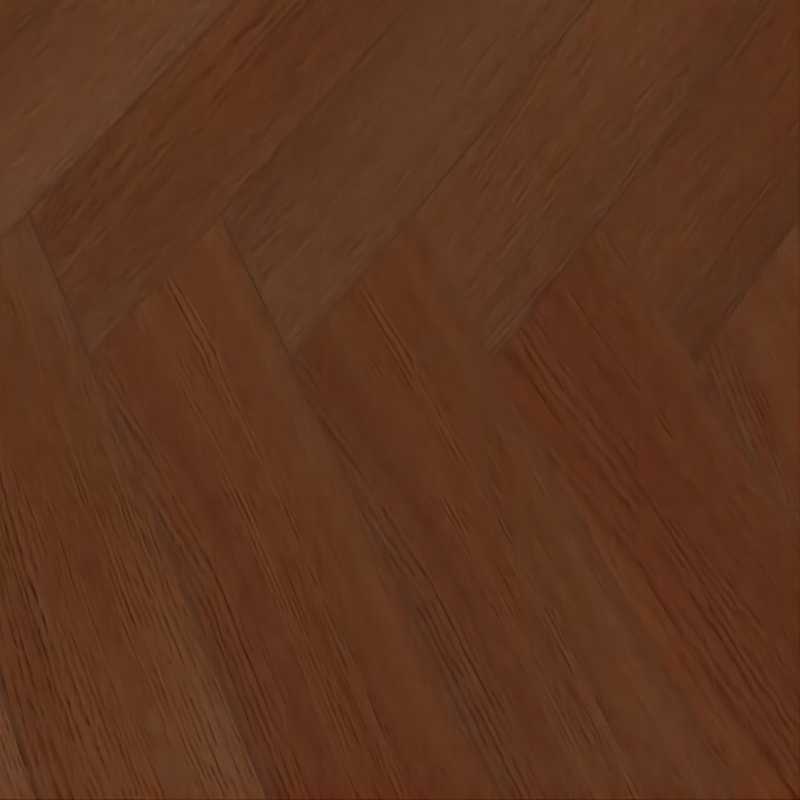

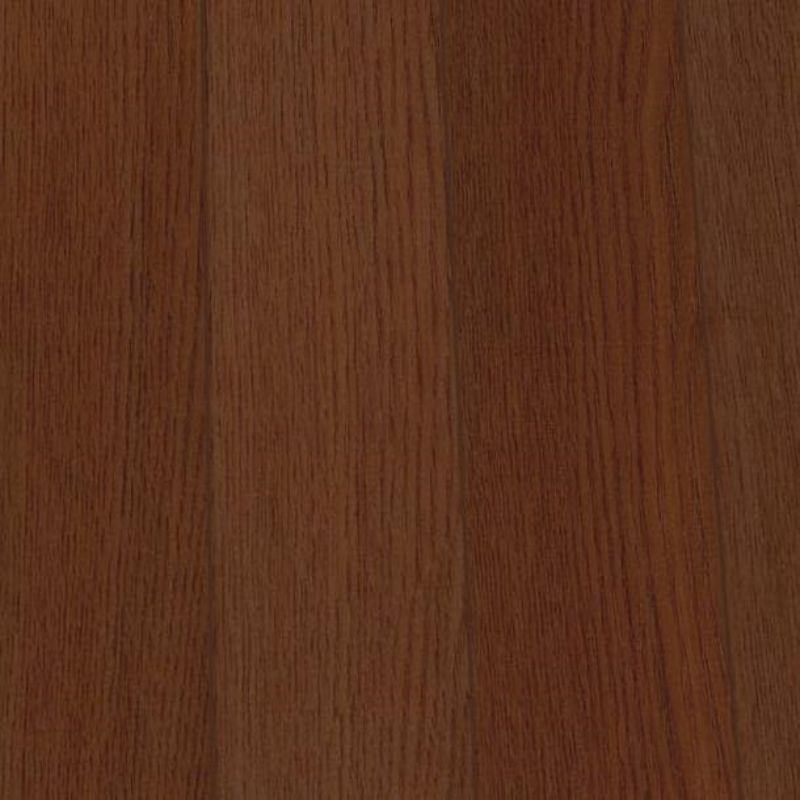

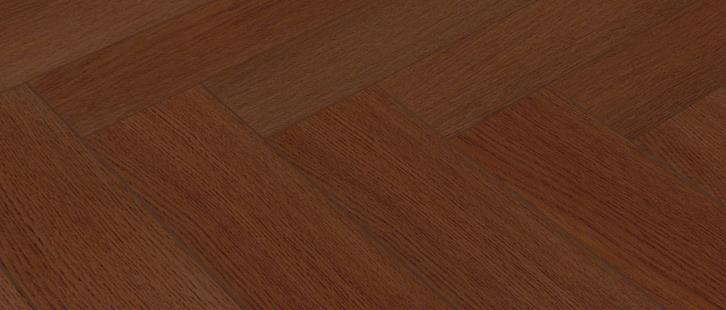

Surface Finishes and Available Designs

The décor is a printed design, and the available wood-grain effects, colours and surface textures are the ones the factory actually produces. The finish affects how the floor reads as well as how it performs: a matte finish reduces reflection and makes fine surface marks less obvious, and an embossed finish adds texture and changes how light falls across the grain. Where the embossing is aligned with the printed grain, the product is described as embossed in register, and the specification states for each design whether the embossing is aligned or random.

The available colours and designs are listed with the product, and the tone is confirmed on a sample in the room where the floor will be laid, because the same tone name can mean different things between suppliers and the light changes how the colour reads.

Applications

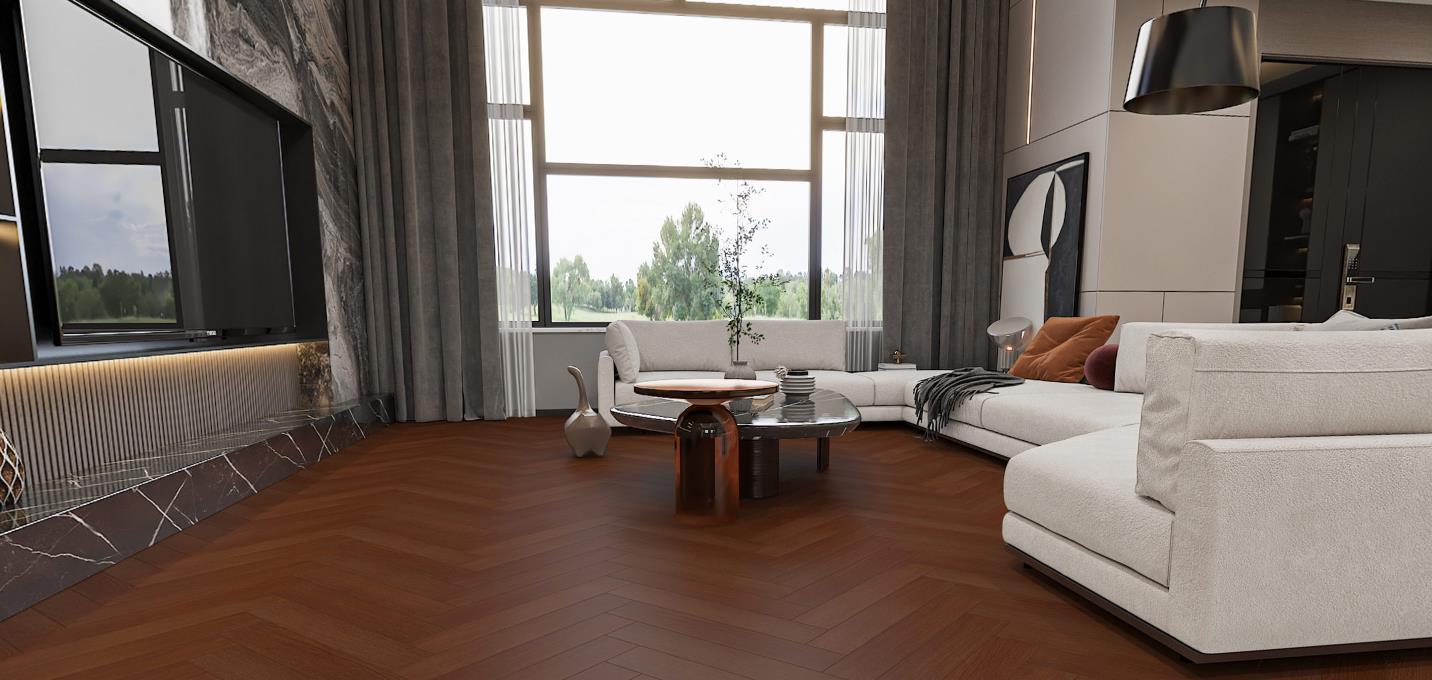

In residential interiors, the floor is used in living rooms, bedrooms, studies and hallways. In commercial interiors, the suitability is checked against the declared use class and the project's requirements rather than assumed from the product type: an office floor turns on the behaviour under chair castors, a retail floor turns on the traffic and the cleaning routine, a hotel turns on the traffic and the maintenance cost, and a school, a library or another public interior turns on the traffic profile and the cleaning routine of the building.

The product standard does not treat frequently wet areas as part of the normal scope of use for a laminate floor. A kitchen or a restaurant is assessed on the specific conditions rather than assumed suitable, and the product is not intended for areas with frequent standing water or persistent damp. Where the project includes underfloor heating, the compatibility and the temperature limits are confirmed from the installation instructions for this specific product and from the heating system's requirements.

Quality Control and Testing

The checks below are the ones a buyer can carry out on this product. The locking joint and the A/B pair are the two items this page treats as central, and the other items are the same for any laminate product. The standard each item belongs to is stated, and no figure is quoted here for a test that the product's own report does not state.

The standard reference for a product is a product standard, not a certification: a claim that a product is certified to it is supported by the report for the exact model, with the standard version stated. A management-system certificate such as ISO 14001 relates to the production management system and does not demonstrate the performance of the product. The report verification method is covered on the laminate flooring quality standards page.

OEM and Wholesale Supply

The following items are confirmed for the specific order and stated in writing in the quotation:

• Décor, colour and surface texture options actually available.

• A and B plank dimensions and whether the pair differs in size or only in profile orientation.

• Abrasion class and the standard version stated in the report.

• Surface finish, edge profile and locking profile with its licence status.

• Underlay options, including whether an integrated backing is offered.

• Packaging, including pieces per carton, coverage per carton for the A/B pair and OEM packaging.

• MOQ for standard and customized designs, and the tooling requirement for a custom décor.

• Sample availability, and whether the sample is free or charged.

• Production lead time for the order size and configuration.

• Warranty scope and duration, including commercial use.

To request a quotation, state the required quantity, the destination market, the preferred décor, the plank size, whether the order is standard or customized, and whether samples are needed; the quotation states the specification, the packaging, the MOQ, the sample terms and the lead time for that configuration.

Frequently Asked Questions

1. Is 12mm thickness necessary for a herringbone laminate floor?
The thickness is a specification choice rather than a requirement. The total thickness affects stiffness and the installed height, while the wear layer and its abrasion class determine the surface performance. The suitable thickness depends on the subfloor, the height available and the project requirement.

2. Can it be used in kitchens?
It is not intended for areas with frequent standing water or persistent damp, and the product standard does not treat frequently wet areas as part of the normal scope of use for a laminate floor. A kitchen is assessed on the specific conditions, and the product's installation instructions and warranty are the basis for the decision.

3. Does installation require glue?
The product is installed as a floating click-lock floor, without adhesive to the subfloor. Whether a glue-down installation is permitted is stated in the installation instructions, and the two methods are not interchangeable.

4. Can it be used with underfloor heating?
It depends on the product and the heating system, and the compatibility and temperature limits are confirmed from the installation instructions for this specific product and from the heating system's requirements.

5. What is the minimum order quantity and the lead time?
Both are confirmed in the quotation for the configuration being ordered, and a custom décor has its own tooling requirement and a higher MOQ than a standard design from the existing range.

6. Are samples free or charged?
Sample terms are stated in the quotation: the quotation says whether the sample is free or charged, and what the freight terms are. A sample of the exact décor and finish is supplied so that the design is confirmed before the order.

7. What warranty applies?
The warranty scope and duration are stated in the quotation and the warranty document for the product, including the conditions on the subfloor, the installation and the application.

8. Is herringbone harder to install than a straight lay?
It needs planning rather than difficulty: the A and B planks, the starting point and the direction are planned before the first row, and the click-lock profile is engaged along the joint. A professional installer is advisable for a large commercial project.

9. How is the flooring maintained?
Routine sweeping or vacuuming to remove grit, and damp mopping with a cleaner intended for laminate. Excess water and abrasive pads are avoided, and the care instructions for the product are followed.
