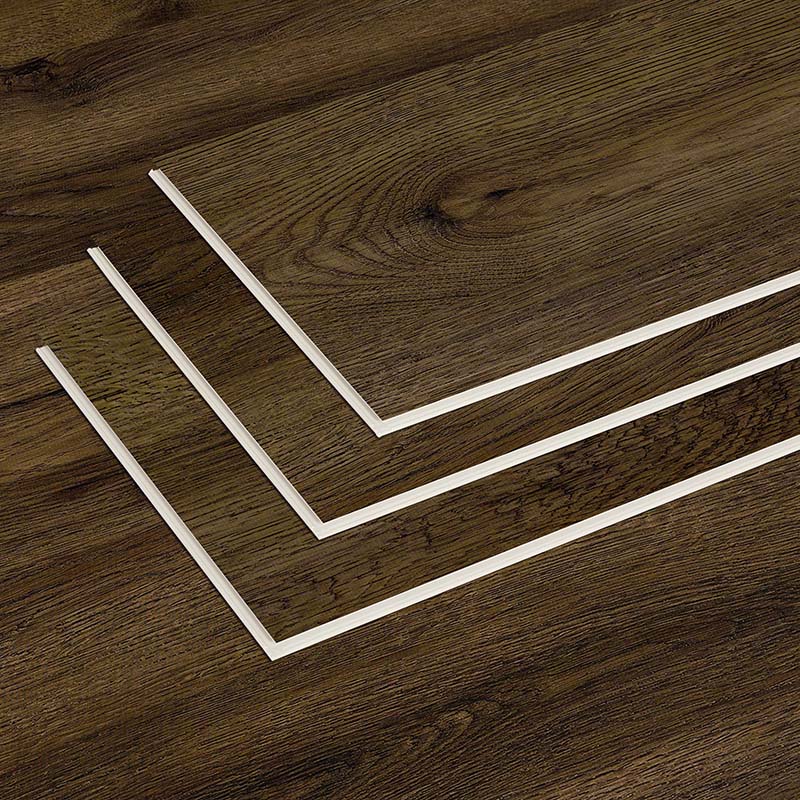

3.5mm Vinyl SPC Flooring

3.5mm Vinyl SPC (Stone Plastic Composite) flooring represents a cost-effective solution for residential and light commercial flooring projects that demand water resistance, dimensional stability, and fast installation. While thinner than premium SPC options, this entry-level profile delivers substantial performance when manufactured to industry standards. This article explores the specifications, applications, limitations, and compliance factors of 3.5mm SPC flooring in technical depth.

What is 3.5mm Vinyl SPC Flooring?

SPC flooring is a multi-layered engineered product that combines the strength of stone-based rigid cores with the design versatility of vinyl. A 3.5mm SPC plank typically consists of:

• Wear Layer (0.2–0.3mm): Transparent, UV-coated surface that protects against scratches, stains, and fading.

• Decorative Film: Digitally printed vinyl layer simulating wood, stone, or tile.

• SPC Core (~3.0mm): A dense mixture of limestone powder, PVC, and stabilizers.

• Optional Underlayment (Not always included): IXPE or EVA foam for sound reduction and comfort underfoot.

Key Technical Specifications

Advantages of 3.5mm SPC Flooring

1. Cost-Effectiveness

3.5mm options are among the most affordable SPC flooring products, typically ranging from $1.20–$2.20 per sq. ft., depending on wear layer, finish, and underlayment inclusion.

2. Lightweight & Easy Installation

Ideal for DIY projects and renovations where subfloor prep and material weight are concerns. Most products feature click-lock systems (e.g., Unilin), enabling tool-free installation.

3. Waterproof Construction

The rigid core structure offers 100% waterproof protection, suitable for kitchens, bathrooms, laundry rooms, and basements.

4. Low Maintenance

Routine cleaning with pH-neutral cleaners is sufficient. Stain and chemical resistance ensures long-term surface aesthetics.

Limitations to Consider

• Not Suitable for Heavy Commercial Use: The 0.2–0.3mm wear layer is better suited for moderate foot traffic.

• Limited Sound Insulation: Many 3.5mm planks lack integrated padding; underlayment must be added separately for improved IIC/STC ratings.

• Subfloor Sensitivity: Due to its thinner profile, the subfloor must be well-leveled to prevent telegraphing.

Engineering & Compliance Considerations

A. Installation Guidelines

• Substrate Requirements: Must be clean, dry, and level to ≤2mm over 2 meters (per ASTM F710).

• Expansion Gaps: Maintain 5–10mm perimeter spacing to accommodate minor movement.

• Underlayment: Recommended where not attached; ensures better acoustic and moisture protection.

B. Regulatory and Certification Standards

Ensure your 3.5mm SPC product complies with:

• ASTM F3261 (North America): For rigid core performance

• ISO 10582 (EU): For heterogeneous PVC flooring

• CE Certification (EU compliance)

• REACH / RoHS Compliance: For toxic substance control

• FloorScore® / SGS Test Reports: For VOC emissions and indoor air safety

Best Use Cases for 3.5mm SPC Flooring

• Residential apartments

• Rental properties

• Utility rooms and secondary bathrooms

• Temporary commercial installations (pop-ups, trade show flooring)

This thickness is generally not recommended for environments with heavy rolling loads, sharp heel impacts, or high point loads.

Frequently Asked Questions (FAQ)

Q1: Is 3.5mm SPC flooring durable enough for families with pets?

Yes, if the product has at least a 0.3mm wear layer and is certified for scratch resistance under EN 13329. For large dogs, a thicker wear layer may be advisable.

Q2: Can 3.5mm SPC be installed over radiant heating?

Yes, provided the product is rated for use over radiant systems and the surface temperature does not exceed 27°C (81°F).

Q3: Does 3.5mm SPC flooring require acclimation before installation?

Yes. Allow the flooring to acclimate for 24–48 hours in the installation environment to stabilize temperature and humidity.

Q4: Is this thickness enough for kitchens or laundry areas?

Yes, 3.5mm SPC with a waterproof core and sealed click-lock joints is suitable for wet areas, assuming proper installation and subfloor prep.

Sample Performance Metrics (Tested)

Conclusion: Is 3.5mm SPC Flooring Right for You?

3.5mm Vinyl SPC flooring offers an optimal balance between affordability and functionality for low- to moderate-traffic environments. It is especially advantageous in applications where budget constraints exist but compliance, moisture resistance, and visual appeal remain non-negotiable. When sourced from qualified suppliers that meet ISO, ASTM, and environmental standards, it becomes a viable, low-maintenance flooring solution.

Wear layer: The wear layer material has excellent chemical stability and is not easy to be eroded by chemical substances such as acid and alkali.

Decorative Presenting a variety of realistic patterns and colors.

SPC Core : High-density structure, not easy to sag, bending and other problems, maintain good flatness.

Foam: Ensure the overall flatness and stability of the floor. When under pressure, the pressure can be evenly dispersed to avoid the problem of excessive local deformation.

1.The 3.5mm thickness of SPC floor makes the floor have good flexibility.

2.The 3.5mm SPC floor thickness can effectively reduce the occupation of space height, so that the interior space is more open in the visual and practical feeling.

3.Strong durability: high compressive strength and impact resistance.

4.It has certain fire performance, can effectively prevent the spread of fire, and reach a certain fire rating.

5.It has good antibacterial and mildew resistance, can inhibit the growth and reproduction of bacteria, mold and other microorganisms, and keep the floor surface clean and hygienic.

6.Healthy and environmentally friendly.

Application :Home space: living room, bedroom, study, kitchen children's room; Commercial space: hotel, office, shop, gym, hotel; Public Spaces: schools, libraries, etc.
