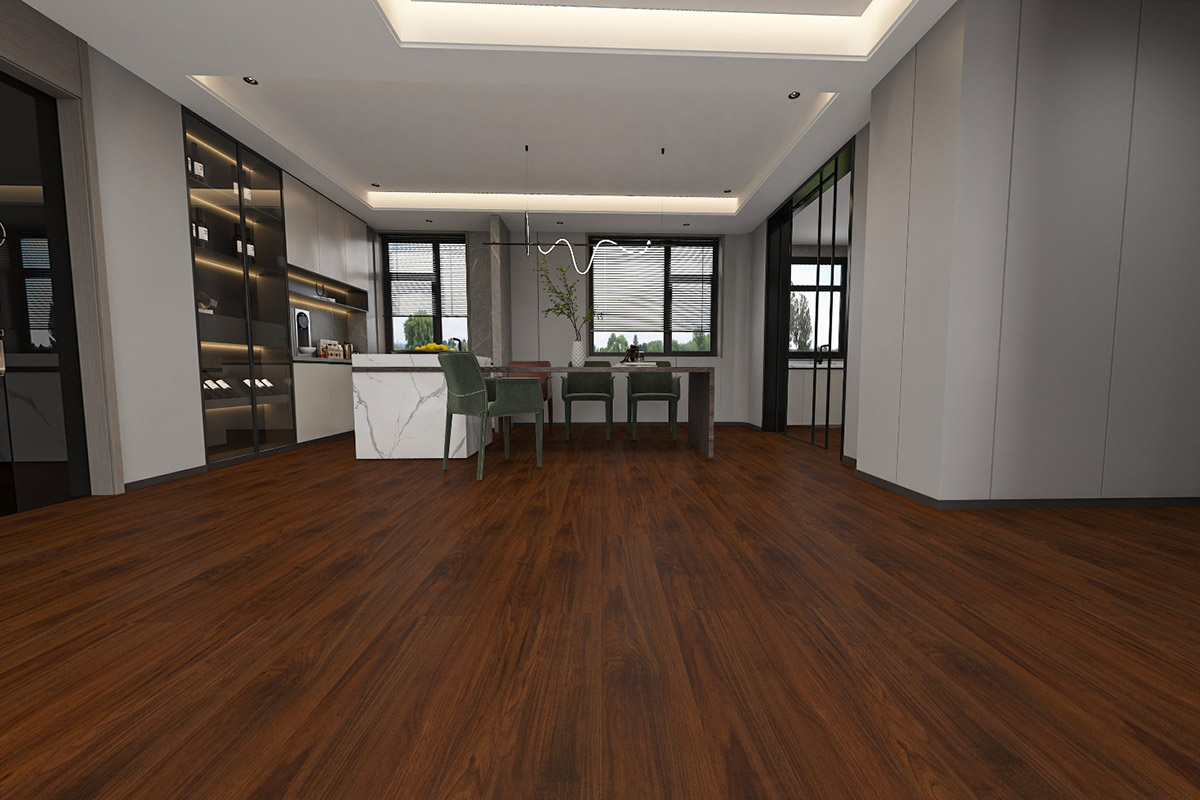

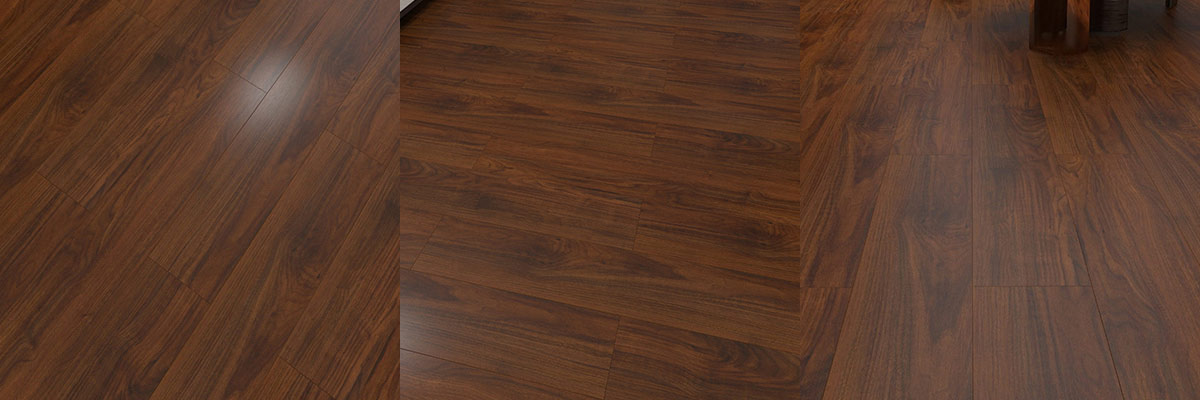

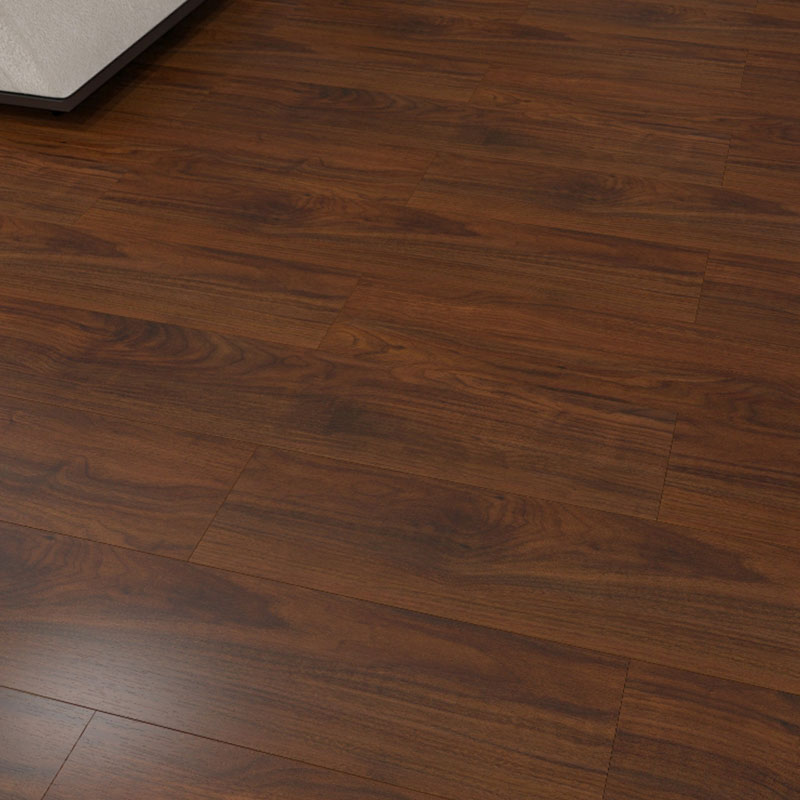

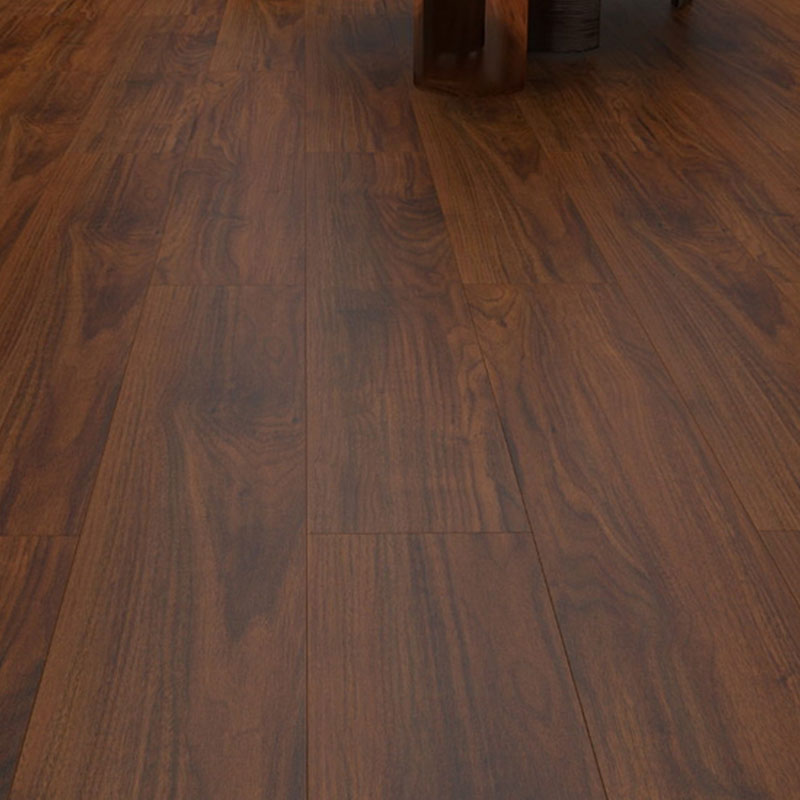

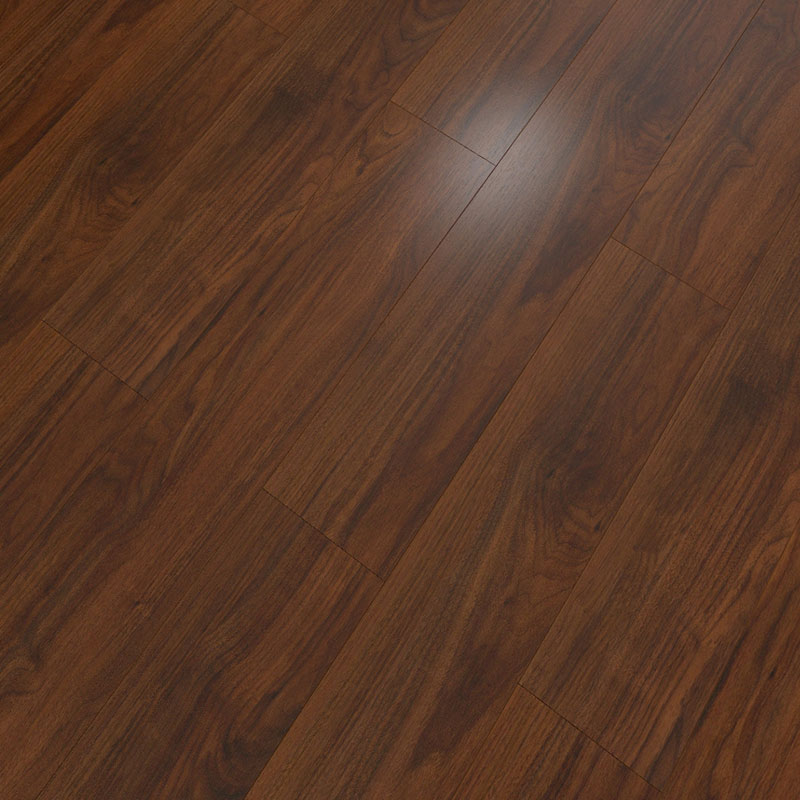

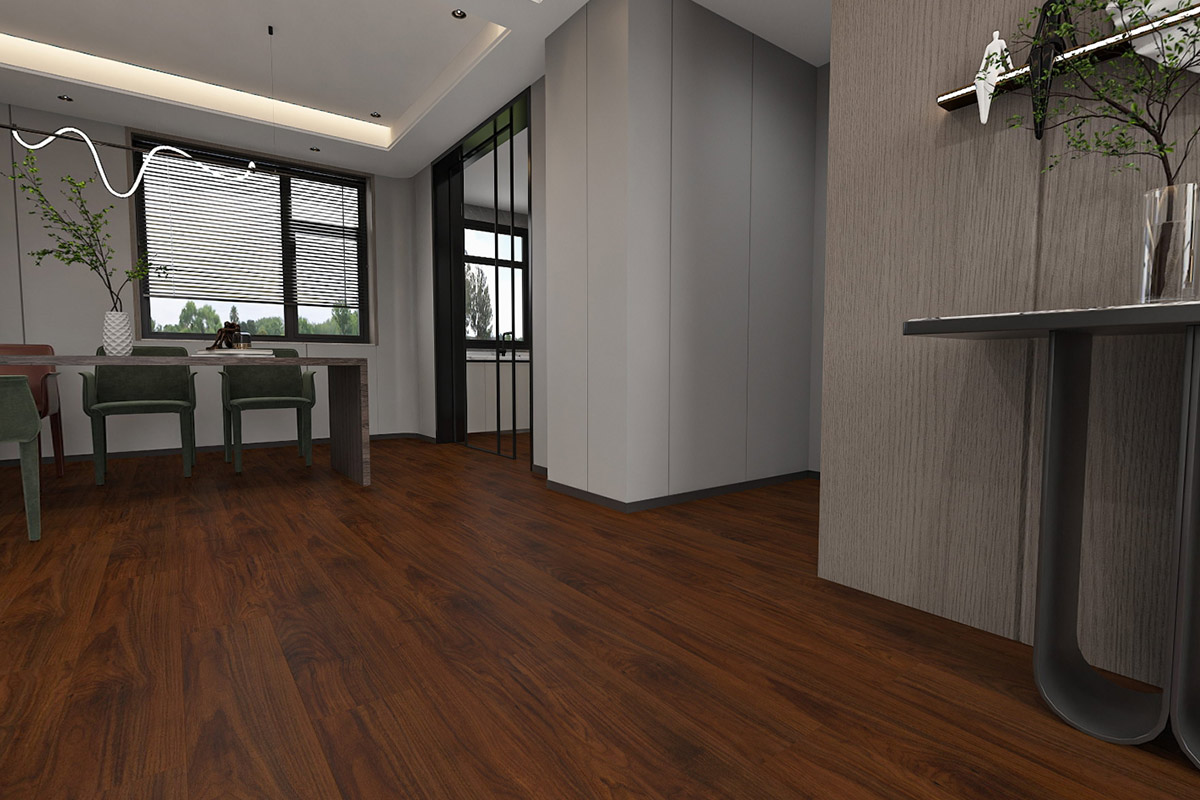

Dark Brown Waterproof Carbon Laminate Flooring

Product Definition

Dark Brown Waterproof Carbon Laminate Flooring refers to a high-density composite flooring system enhanced with carbon-reinforced layers for superior dimensional stability, abrasion resistance, and moisture protection. It is engineered for heavy-use residential and light-commercial applications where durability, aesthetics, and installation efficiency are required.

Technical Parameters & Specifications

Structure & Material Composition

• UV Coating：Protects against stains, fading, and minor scratches.

• Wear Layer：Melamine-based abrasion layer delivering AC-rated performance.

• Decor Film：Dark brown wood pattern printed with multi-pass digital technology.

• Carbon-Reinforced Core：HDF substrate strengthened with carbon-based additives to improve rigidity, stability, and water resistance.

• Balance Layer：Ensures structural stability and prevents board warping.

Manufacturing Process

1. Raw Material Preparation：HDF fibers, melamine resin, carbon additives processed under controlled moisture (4–6%).

2. Hot Pressing：Wear layer, décor film, and HDF core pressed at 180–200°C using multi-layer hydraulic press.

3. Cooling & Stabilization：Boards conditioned to eliminate internal stress.

4. CNC Cutting：Large panels trimmed into consistent width/length; tolerance kept within ±0.1 mm.

5. Click Profiling：High-precision milling of locking profiles on four sides.

6. Edge Sealing：Wax/oil-based waterproof sealer applied to reduce water absorption at joints.

7. Surface Inspection：Gloss level, scratch resistance, pattern consistency inspected.

8. Packing：Moisture-proof film + corner protection + export cartons.

Industry Comparison Table

Application Scenarios

• Distributors：Suitable for retail collections with waterproofing requirements and dark wood designs.

• EPC Contractors：Used in hotels, offices, public walkways, and mid-range commercial fit-outs.

• Developers：Ideal for residential units, rental properties, and renovation projects.

• Installers：Fast-install click system reduces on-site labor hours significantly.

Core Pain Points & Engineering Solutions

• Swelling Due to Moisture：Carbon-enhanced HDF lowers water absorption and improves dimensional stability.

• Surface Wear Failure：AC4/AC5 wear layers ensure long-term abrasion resistance in high-traffic zones.

• Click Lock Breakage：High-precision milling increases joint strength and reduces breakage risks.

• Color Fading Over Time：UV coating reduces photo-degradation and maintains dark brown consistency.

Risk Warnings & Mitigation Advice

• Do not use in continuously wet environments such as bathrooms.

• Confirm surface AC rating based on expected foot traffic.

• Ensure moisture content of substrate ≤2% before installation.

• Require edge sealing for projects in humid climates.

Procurement & Selection Guide

1. Define usage scenario (residential, commercial, humidity level).

2. Select appropriate thickness (8–12 mm based on installation needs).

3. Verify waterproof performance test data (swelling rate, edge protection).

4. Check AC rating according to traffic requirements.

5. Confirm locking system precision through sample testing.

6. Evaluate décor film realism (EIR, texture depth, color accuracy).

7. Review packaging and palletizing for long-distance shipping.

8. Request third-party quality certifications (EN13329, ISO9001).

Engineering Case Study

A 4,500 m² office renovation adopted 12mm Dark Brown Waterproof Carbon Laminate Flooring with AC4 surface. Due to low expansion behavior, expansion joints were reduced by 30%. Installation efficiency improved by 42%, and post-project reports indicated a 0.3% defect rate, mainly related to substrate unevenness corrected during QC.

FAQ

• 1. Is carbon laminate fully waterproof? — It offers spill protection but is not recommended for wet rooms.

• 2. What AC rating is suitable for commercial use? — AC4 or above.

• 3. Does it require underlayment? — Yes, foam or IXPE improves acoustic performance.

• 4. Can it be installed on concrete? — Yes, if moisture is properly controlled.

• 5. Can damaged planks be replaced? — Click-lock allows partial replacement.

• 6. Is expansion gap necessary? — Yes, typically 8–10 mm.

• 7. Can it be used with floor heating? — Yes, compatible with most radiant systems.

• 8. Does carbon reinforcement change the color? — No, color is determined by décor film.

• 9. What is the typical lead time? — 20–35 days depending on order size.

• 10. How long does the color stay stable? — UV coating protects against fading for years under normal exposure.

CTA: Request Quotation / Technical Data / Engineering Samples

For certified samples, detailed technical sheets, container loading data, or engineering quotations, contact our technical procurement department to obtain project-specific recommendations and bulk pricing.

E-E-A-T Author Credentials

This article is authored by a flooring materials engineer with over 10 years of experience in laminate flooring formulation, EN13329 compliance testing, and large-scale OEM manufacturing for global distributors and project contractors.

•





   Application




  Application :Home ,School, Restaurant, Church, Exhibition, Hospital And Othercommercial And Residential Interior Spaces.
