5mm SPC Tile Flooring Manufacture
5mm SPC tile flooring offers an innovative, rigid, and waterproof flooring solution with superior structural stability and minimal maintenance. Engineered with a stone-polymer composite core, it provides high resistance to impact, scratches, and humidity, making it ideal for both residential and commercial environments. Its click-lock system ensures fast, glue-free installation, while compliance with EN, ASTM, and ISO standards guarantees safety, durability, and indoor air quality. With versatile design options and a lifespan of up to 25 years, SPC tile flooring is a cost-effective, sustainable, and high-performance flooring choice suitable for modern architectural projects.
5mm SPC tile flooring is a rigid, stone-polymer composite flooring solution designed for residential, commercial, and light industrial applications. Combining PVC, limestone powder, and stabilizers, SPC tiles are engineered for superior dimensional stability, water resistance, and ease of installation. This article explores manufacturing processes, engineering principles, regulatory compliance, and operational guidelines to ensure long-lasting performance.
Engineering Principles
Multi-Layer Structure:
UV Protective Coating – enhances stain and scratch resistance.
Wear Layer (0.3–0.7 mm) – ensures durability against abrasion.
Decor Film – replicates wood, stone, or ceramic aesthetics.
SPC Core Layer (5mm) – rigid structure, stability, and water resistance.
Optional Underlayment – provides sound insulation and comfort.
Click-Lock Installation System:
Enables floating floor installation without adhesives.
Maintains tight joint integrity under load and traffic.
Performance Data:
Density: ~2000 kg/m³.
Dimensional Stability: ≤ 0.1% (EN 434).
Impact Resistance: ≥ 800 mm (EN 13329).
Regulatory Standards and Compliance
EN 13501-1: Fire resistance, typically rated Bfl-s1.
EN ISO 10874: Heavy residential and commercial classification.
ASTM F3261: Modular resilient flooring specification.
ISO 16000 / FloorScore: Low VOC emission certification for indoor air quality.
Manufacturing Process Overview
Raw Material Blending – PVC resin, limestone powder, and stabilizers.
Extrusion – formation of the SPC rigid core layer.
Lamination – heat-fused layering with decorative films and wear coats.
Cutting and Profiling – precision machining of click-lock edges.
Surface Treatment – UV coating application for enhanced resistance.
Quality Testing – dimensional stability, abrasion resistance, and VOC levels.
Key Advantages
100% Waterproof – ideal for kitchens, bathrooms, and basements.
High Durability – resistant to dents, scratches, and heavy foot traffic.
Thermal and Acoustic Insulation – comfort in both residential and commercial use.
Sustainable Choice – recyclable materials and low VOC compliance.
Versatile Design – wood, marble, and ceramic-like finishes.
Installation and Operational Guidelines
Subfloor must be level, dry, and dust-free.
Allow 8–10 mm expansion gaps around perimeters.
Maintain indoor temperatures between 15°C–30°C during installation.
Avoid direct heating above 60°C.
Use pH-neutral cleaning agents for long-term surface protection.
Applications

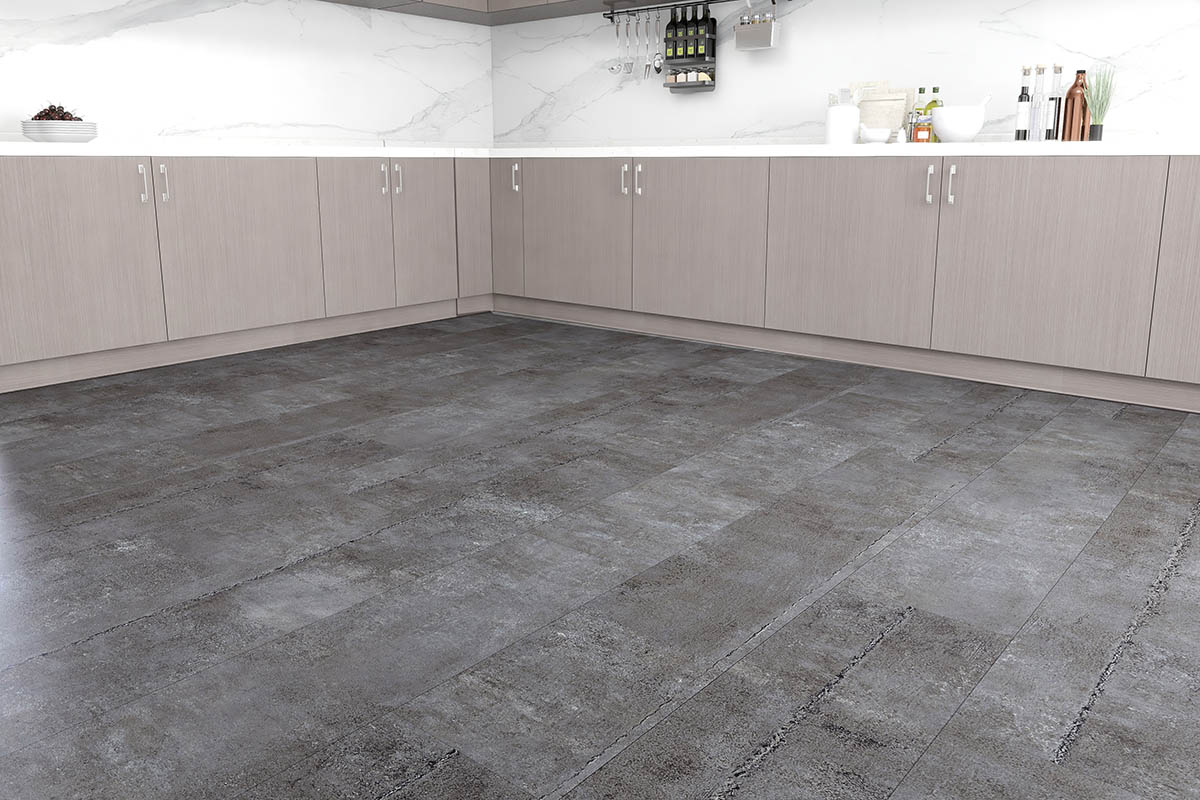

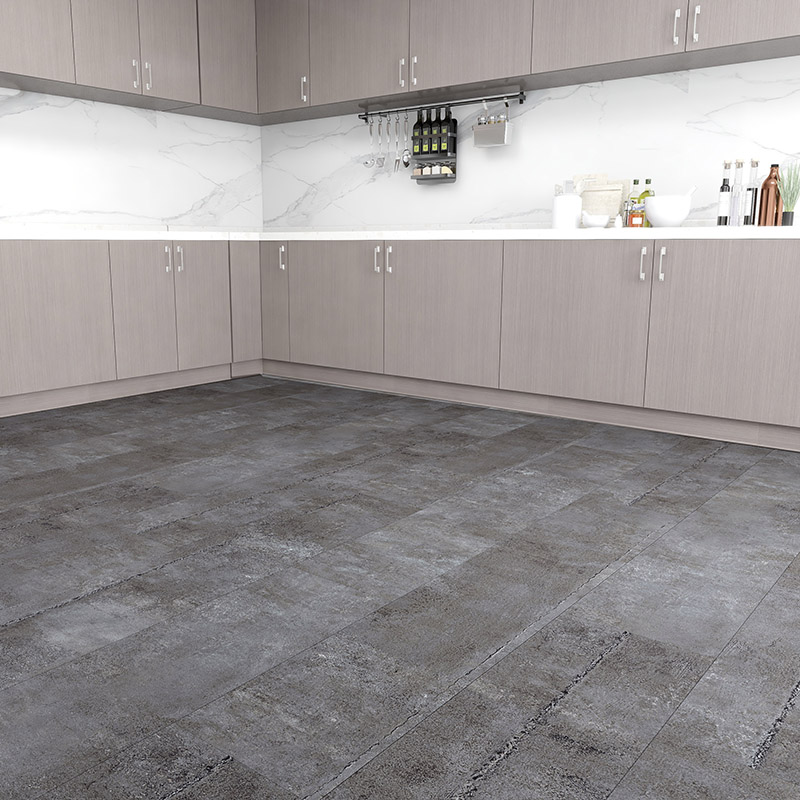

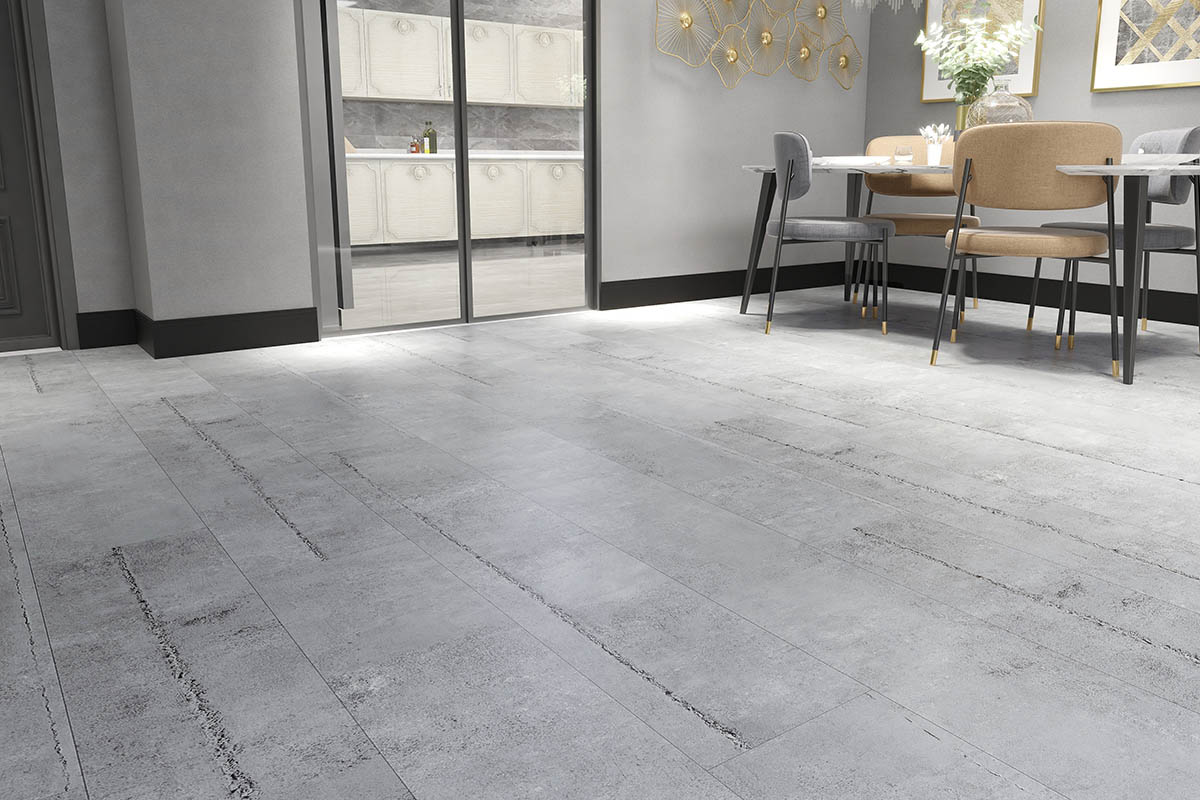

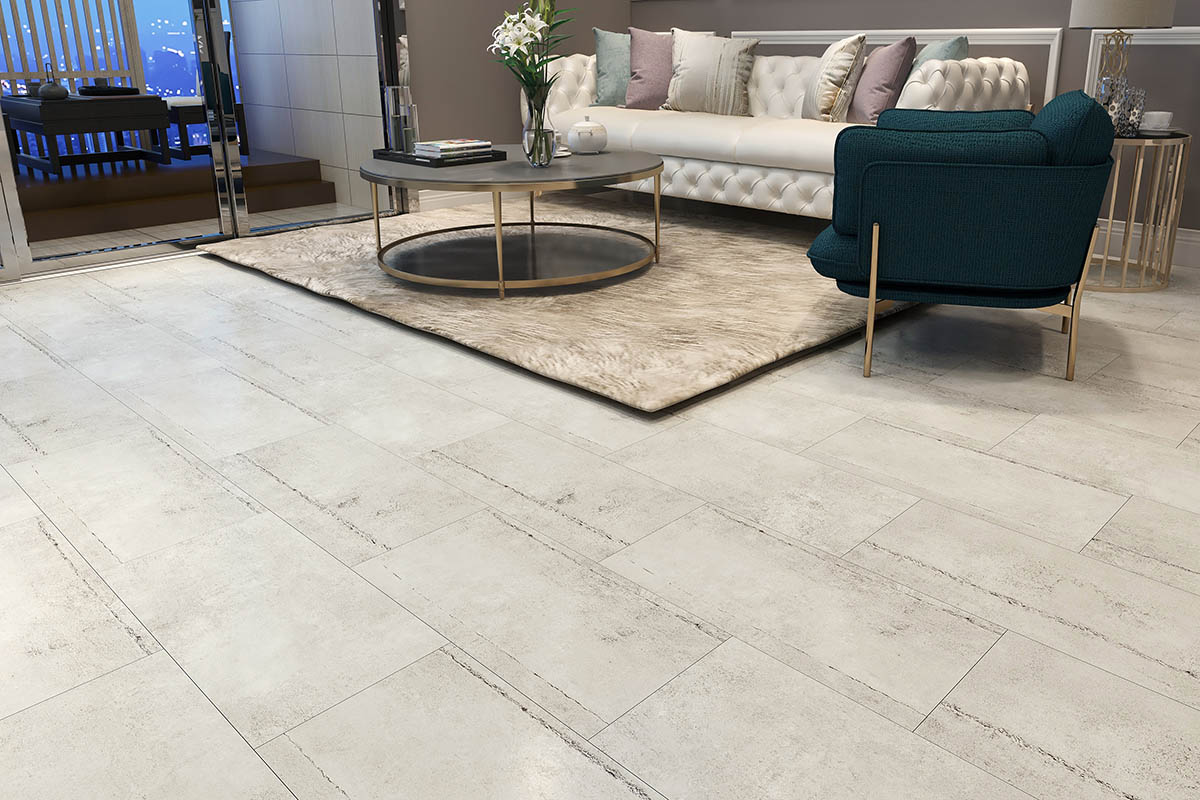

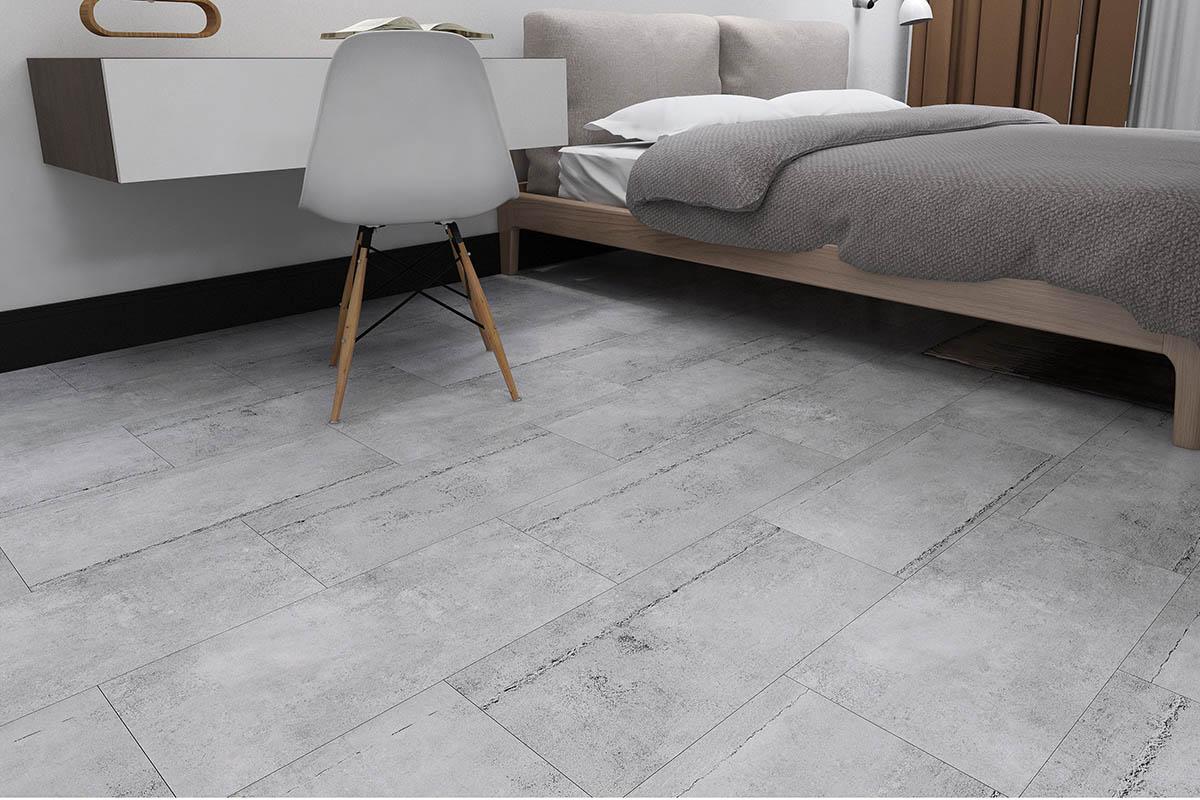

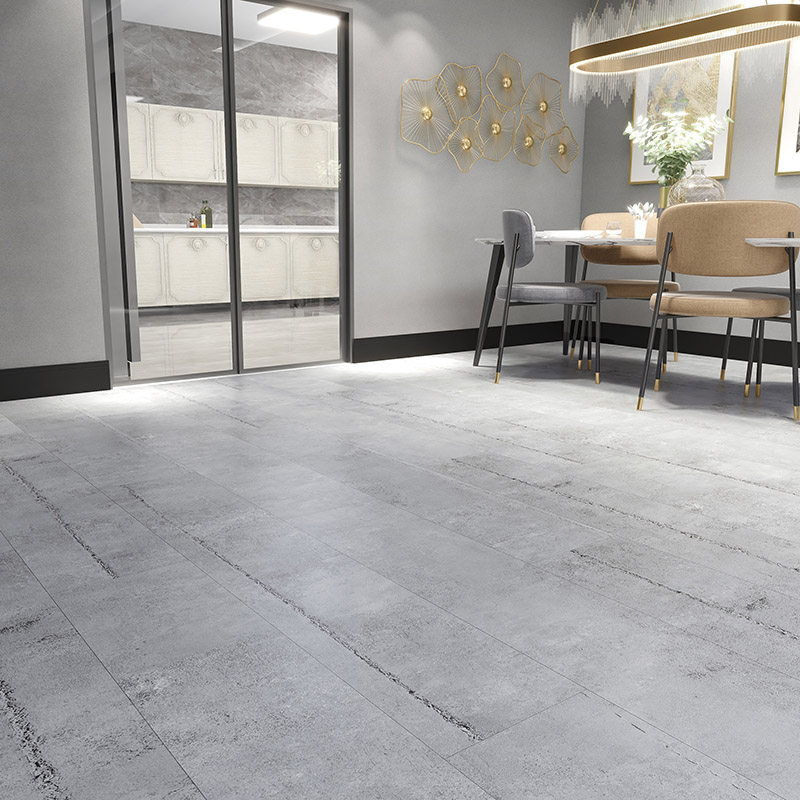

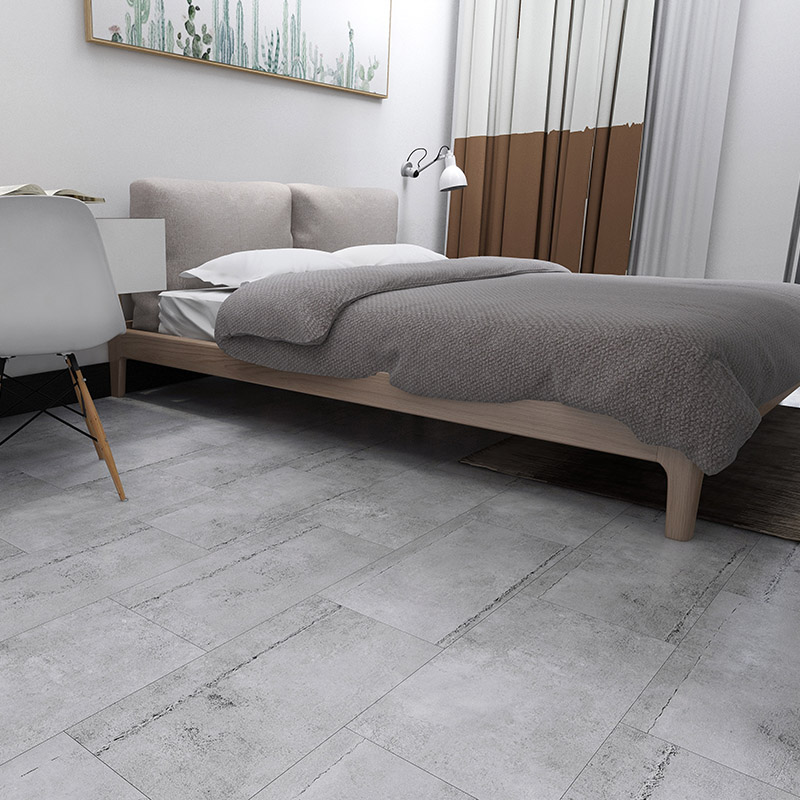

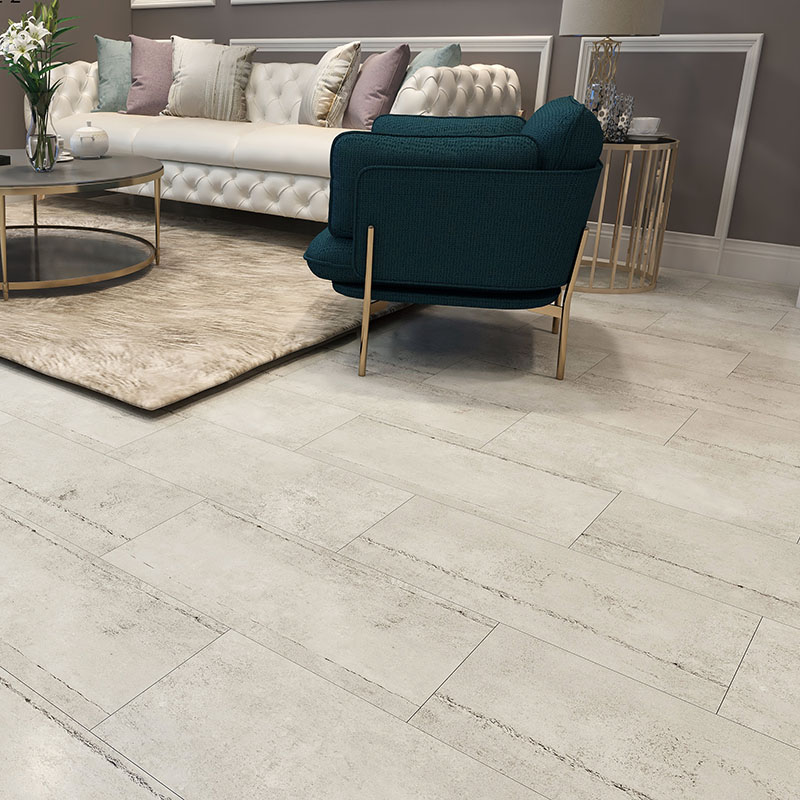

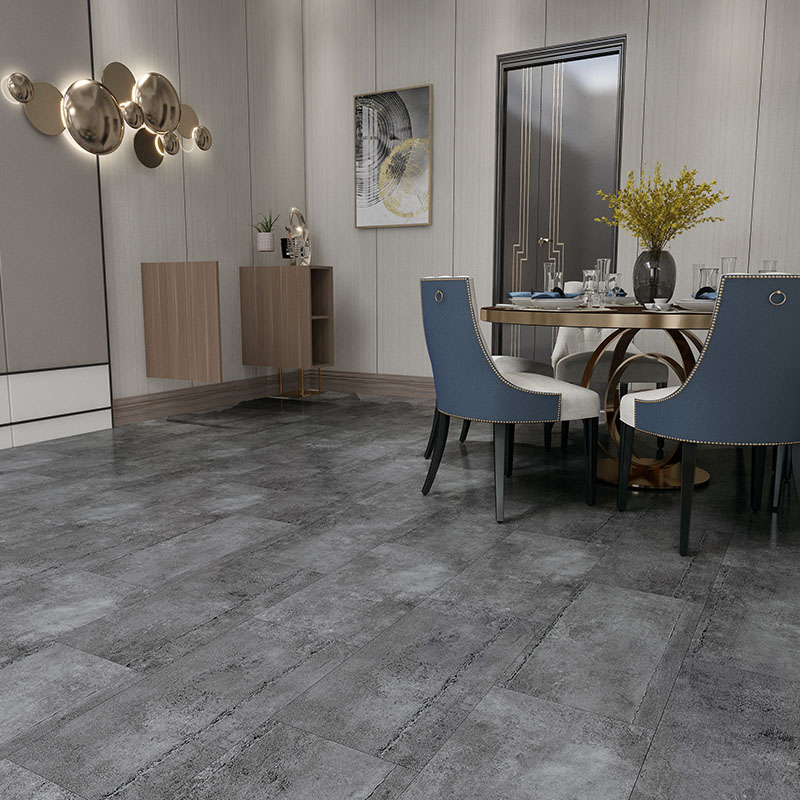

Residential: Kitchens, bathrooms, living areas, basements.
Commercial: Offices, retail, restaurants, healthcare facilities.
Hospitality: Hotels, lounges, conference centers.
Frequently Asked Questions
Q1: How long does 5mm SPC tile flooring last?
Properly installed, it can last 15–25 years.
Q2: Can SPC tiles be installed over ceramic or concrete?
Yes, if the subfloor is level and stable.
Q3: Does SPC flooring expand or contract?
Minimal expansion (≤ 0.1%) compared to traditional vinyl.
Q4: What is the ideal wear layer thickness?
For heavy use, 0.5–0.7 mm is recommended.
| Application |
Application :Covers family areas such as bedroom, living room, kitchen, laundry, children's room; Public places include shopping malls, restaurants, playgrounds, churches, schools, libraries, science and technology museums, etc.
